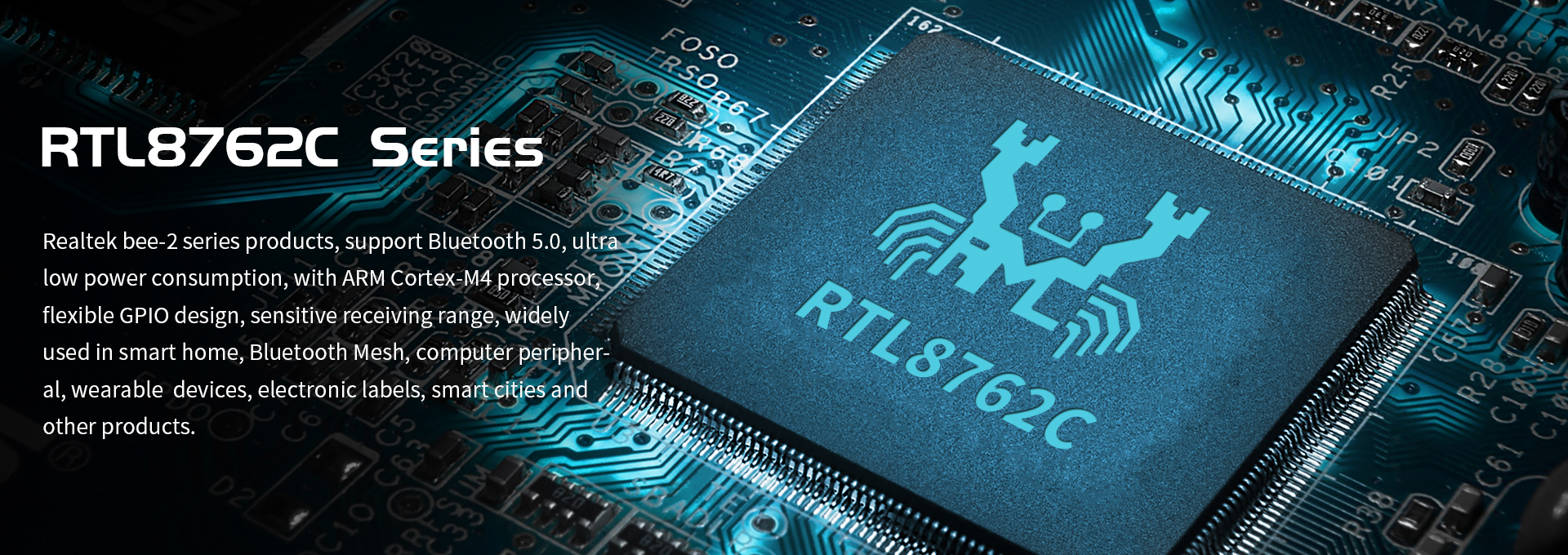

RTL8762C Series
Overview
General Description
Supports Bluetooth 5.0 core specification (RTL8762C Series)
Supports LE 2Mbps
LE advertising Extensions
LE Long Range
High Duty Cycle Non-Connection Advertising
Supports OTA(Over-the-Air)
Cortex-M4 Processor
ARM Cortex-M4 max frequency 40MHz
160KB SRAM totally
Serial Flash Controller (1-bit&4-bits mode)with 16KB 4-way cache
Supports AES128/192/256 encryption/decyption engine
RF Performance
Tx Power: 0/4/7.5 dBm adjustable (refer to datasheet for details)
Rx Sensitivity : -97dBm BLE
Fast AGC control to improve receiving dynamic range
Peripheral Interface
Flexible GPIO
Hardware Keyscan and Quad-decoder
Embedded IR transceiver
Real-Time Counters (RTC)
SPI master/slave x 2; Timers x 8; I2C x 2; PWM x 8; UART x 2
400ksps, 12bit, 8-channel AUXADC
I2S interface for external audio codec
I8080 interface for LCD
Internal 32K RCOSC to keep BLE link
Embedded PGA and audio ADC with 5-band EQ
IC Part Number
IC Part Number
RTL8762CMF
RTL8762CMF-VI
(AEC-Q100, Group A, Grade 2)
RTL8762CJ
RTL8762CJF
RTL8762CK
RTL8762CKF
CPU Frequency
40MHz
40MHz
40MHz
40MHz
40MHz
40MHz
BT Spec
BT5.0
BT5.0
BT5.0
BT5.0
BT5.0
BT5.0
Internal Flash
512KB
512KB
无
256KB
无
512KB
GPIO
25
25
23
25
31
33
Package(mm)
QFN40 5x5
QFN40 5x5
QFN40 5x5
QFN40 5x5
QFN48 6x6
QFN48 6x6
Download Related Documents
Download RTL8762C Documents
