Make Bluetooth data transfer solutions more streamlined and applicable
According to the different application needs of customers, Realtek provides two data transfer solutions: BLE data transfer and dual-mode Bluetooth data transfer. The Bluetooth chip integrates a complete Bluetooth protocol stack and rich application instructions. The main MCU is connected to the Bluetooth chip through UART, and uses application instructions to configure the basic connection parameters of the Bluetooth chip to expand the Bluetooth transparent transmission interface.
Practical Application Case

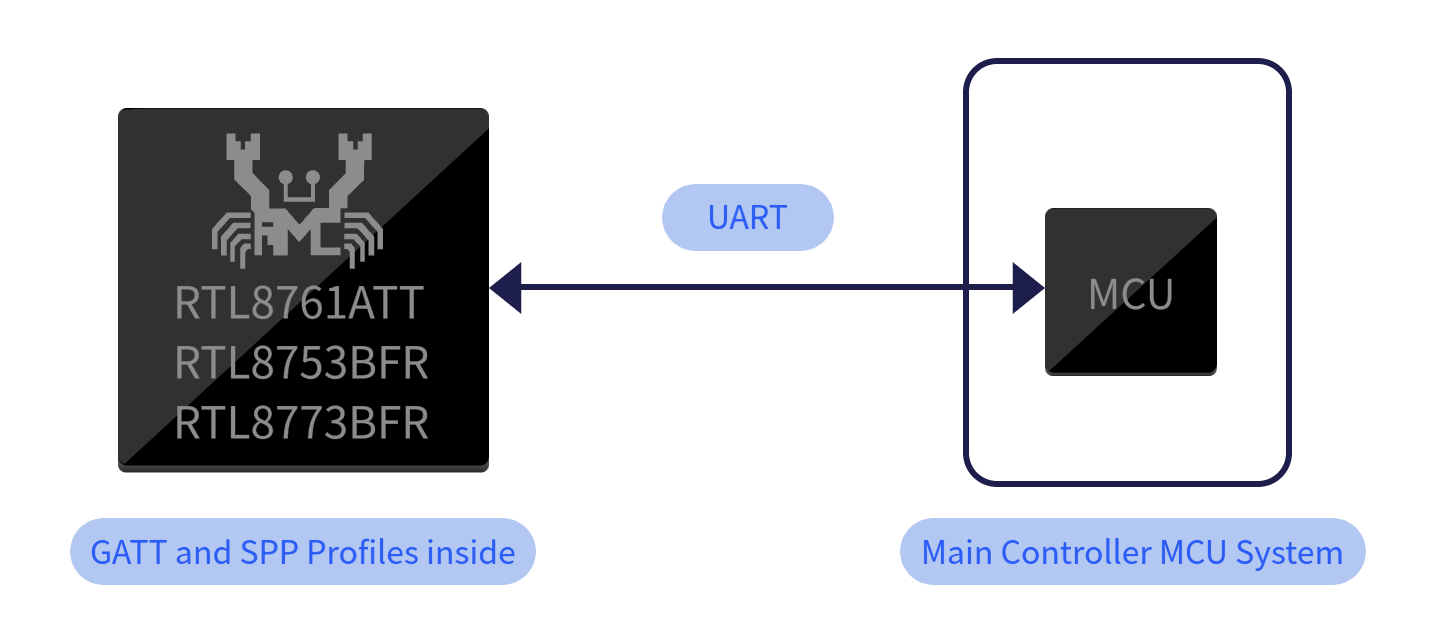

Dual-mode Bluetooth Data Transfer Solution:
Dual-mode Bluetooth Data Transfer Solution Features
• GATT and SPP profiles inside;
• Communicate with external MCU by UART;
• Integrates 32K oscillator for power management.
• Baud rate up to 4Mbps;
• Default baud rate 115.2kbps;
• UART I/F (H4 supported);
• Hardware flow control supported.
Full-featured dashboard SDK, with supporting mobile phone APP engineering, which greatly reduces customer's development workload and accelerates the implementation of project.

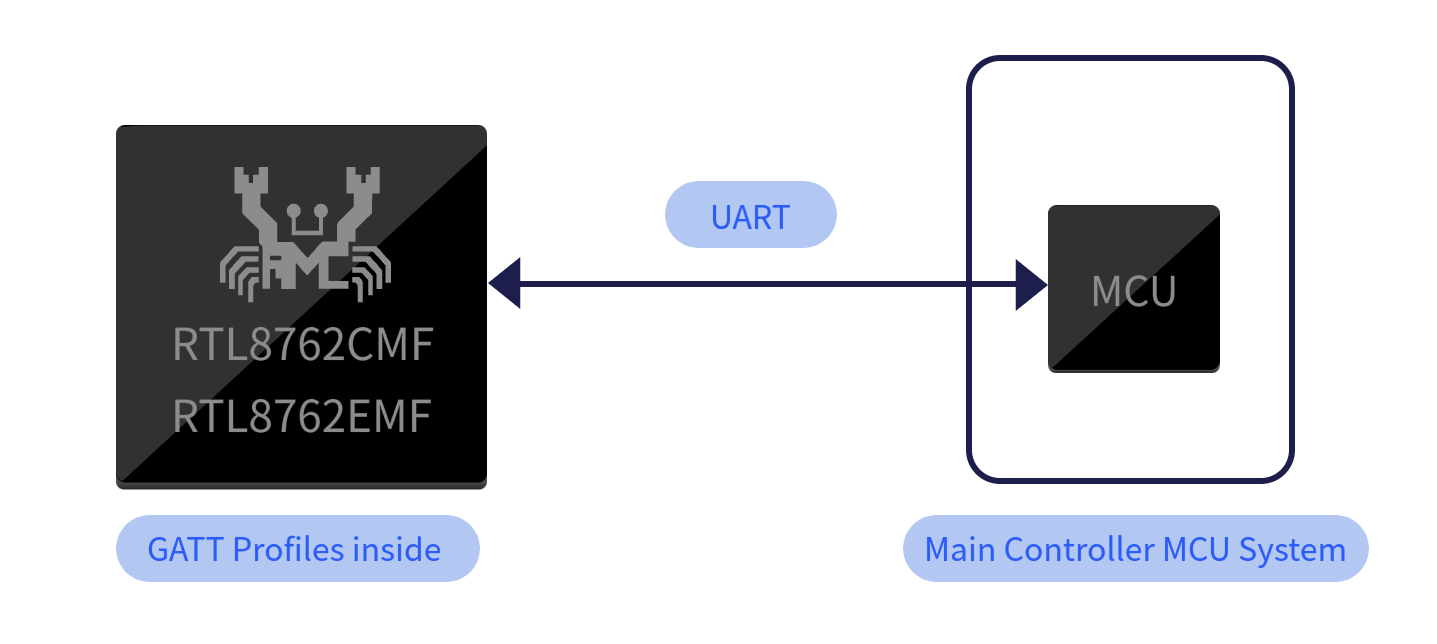

Single-mode Bluetooth Data Transfer Solution:
Single-mode Bluetooth Data Transfer Solution Features
• GATT profiles inside;
• Communicate with external MCU by UART;
• Integrates 32K oscillator for power management.
Full-featured dashboard SDK, with supporting mobile phone APP engineering, which greatly reduces customer's development workload and accelerates the implementation of project.
Data Transfer SoC Selection Table
| Part Number | RTL8761ATT | RTL8753BFR/RTL8773BFR | RTL8762CMF | RTL8762EMF |
|---|---|---|---|---|
| Standard | BR/EDR+BLE 4.2 Dual Mode | BR/EDR+BLE 5.1 Dual Mode | BLE5.0 | BLE5.2 |
| Profile | GATT and SPP | GATT and SPP | BLE | BLE |
| Package | 4mm x 4mm, QFN32 | 6mm x 4mm, QFN40/4.5mm x 6.5mm, QFN46 | 5mm x 5mm, QFN40 | 5mm x 5mm, QFN40 |
| Download related documents | Click to download | Click to download | Click to download | Click to download |
Related SoCs
• UART Baud Rate up to 4Mbps
• Support 1Mbit external SPI flash
• Easy to use, no stack effort
• QFN32 4mm×4mm
• Supports Power Control
• Integrates 32K oscillator for power management
• QFN46 4.5mm×6.5mm
• Cortex M0+ 40MHz MCU
• 104Kbyte SRAM, 512Kbyte flash
• UART with hardware flow control
• QFN40 5mm×5mm
• Cortex M4F 40MHz MCU
• 160Kbyte SRAM, 512Kbyte flash
• UART with hardware flow control
• QFN40 5mm×5mm
