Smart Human Machine Interface Solutions
Smart HMI, Making the Wireless World Visible and Controllable

Realtek offers a wide range of RF chip solutions, including WiFi, classic Bluetooth, low-energy Bluetooth, Thread, Matter, and proprietary 2.4G. These solutions enable the transmission of various media and control information. Additionally, Realtek provides display technologies of various scales. The combination of visible Human-Machine Interface (HMI) and RF technology makes wireless control clear and visible.
These integrated HMI solutions are widely used in smart home controls, air conditioner controllers, home thermostats, smart kitchen appliances, coffee machines, washing machines, and ovens. They are also extensively applied in industrial control, gateway, and automotive markets (Dashboard).

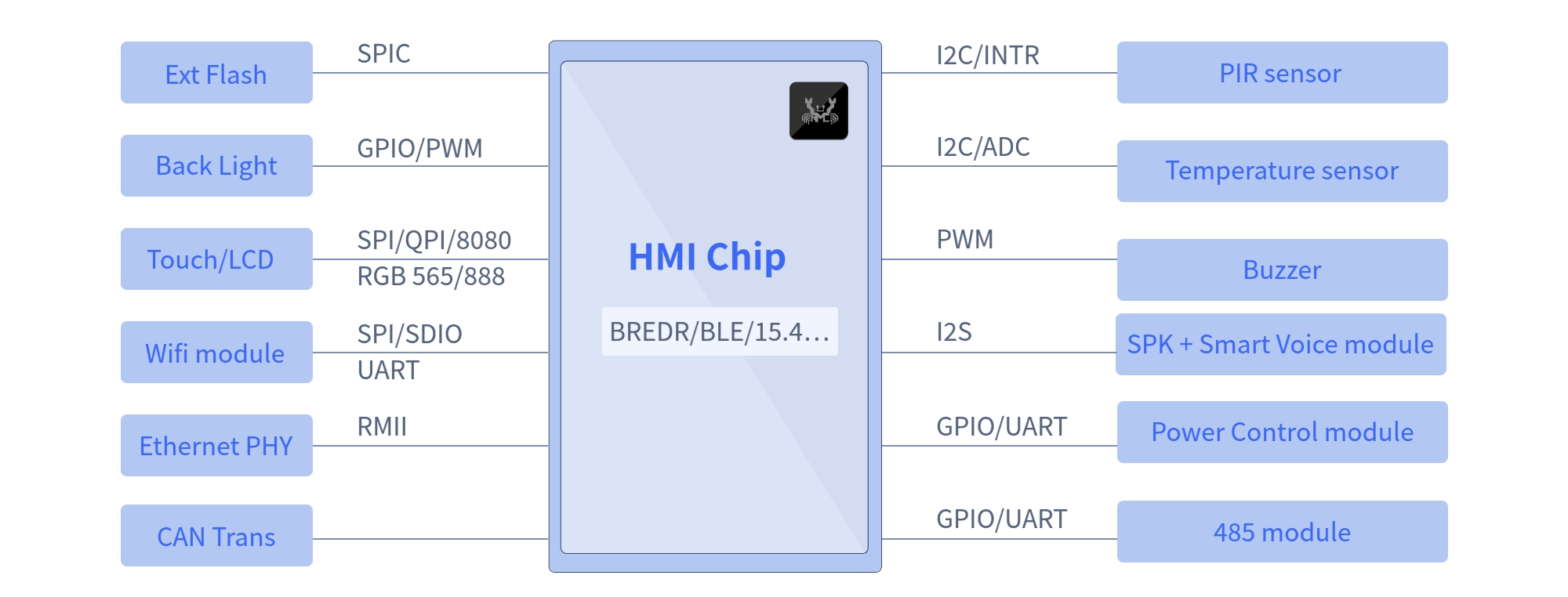

System Structure

Realtek offers flexible HMI system solutions, featuring mature and stable UI designs and efficient implementation techniques. These help a wide range of customers to quickly complete technical selection and transition to rapid development and acceptance phases. For gateway devices, Realtek provides cost-effective dual RF solutions, ensuring that 15.4/BLE mesh gateways operate 100% of the time and reducing event loss probability. For high-QoS customers, Realtek offers Ethernet solutions to ensure more stable communication over long-distance nodes. Interface technologies such as CAN provide integrated advantages for industrial users and vehicle scenarios. The solutions integrate a series of mature SDKs including Wi-Fi driver, LWIP, Thread, Matter, Classic Bluetooth, and BLE mesh. UI support is tailored to customer needs, with several UI engines like RTK-UI, RVD (Realtek Visual Designer), and LVGL (Light and Versatile Graphics Library) meeting different design requirements.

Recommended Hardware
Choose the SoC that suits your design requirements
RTL8762EKF RTL8752HKF RTL8762DT RTL8773ETP RTL8773EWP RTL8772GWP
Protocol BLE/2.4G BLE/2.4G BLE BR / EDR / BLE BR / EDR / BLE BLE/Thread/zigbee/2.4G
Wifi Extend N N N Y Y Y
MCU CM0+@40MHz CM0+@40MHz CM4F@90MHz Real-M300 (like CM33) @100MHz Real-M300F (like CM33F) @100MHz CM55@125MHz TrustZone
SRAM 104KB 120KB 192KB 778KB 778KB 384KB
PSRAM / / / 4MB 8MB 4MB
LCD interface SPI QPI/8080/SPI QPI/8080/SPI QPI/8080 QPI/8080/RGB565/RGB888 QPI/8080/RGB565/RGB888
UI Ability 240*240*RGB565@20FPS 240x240xRGB565 @40FPS 320x240xRGB565 @30FPS 320x240 RGB565@30FPS 480x272 RGB565 @20FPS 480x272x888 480x320x888 @30FPS 480x480x565 800x480x565@30FPS 480x320x888 480x480x565 800x480x565@30FPS
CAN N N N Y Y Y
Package (mm) QFN48 6x6 QFN48 6x6 QFN56 7x7 QFN68 7x7 QFN88 10x10 QFN88 10x10
Series RTL8762E > RTL8752H > RTL8762D > RTL8773E RTL8773E RTL8772G >
Contact Us
If you are interested in the above products, please contact our REALTEK sales or ask our customer support team for more information.
