Snow

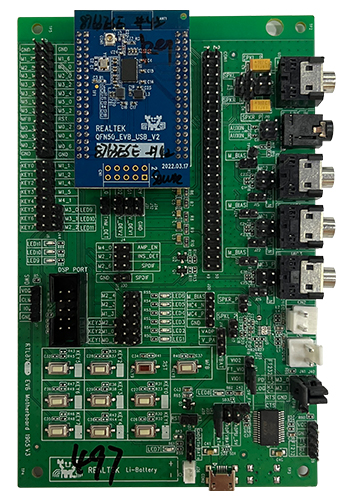

EVB-RTL8763E

Stereo audio input/output;

MIC differential/single ended input;

Built in 3W Class D stereo audio amplifier;

Easy access to IO pins;

10 push buttons and 6 status LEDs;

Temperature sensor (NTC resistor);

Built in USB to serial UART converter (FT232RL).

The detail information, please check related documents.

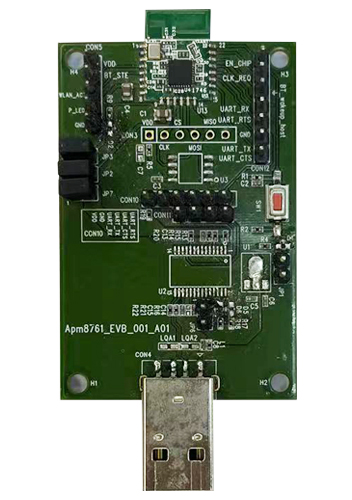

EVB-RTL8761ATT

EVB is made up of RTL8761ATT series daught board and one mother board.

Mother board supply:

Stamp hole module;

USB power supply (including power convert module)

FT232RL, one USB-2-UART IC;

2 GPIO/LED output pins.

The detail information, please check related documents.

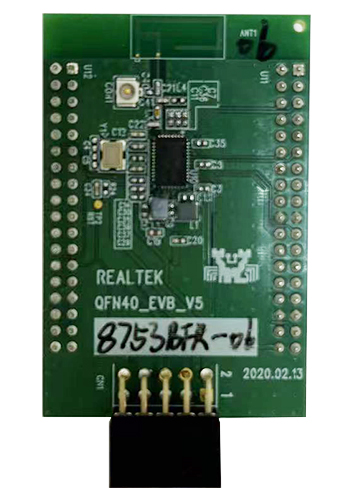

EVB-RTL8753BFR

EVB is made up of RTL8753BFR series daught board and one mother board.

Mother board supply:

Power convert module;

8 GPIO buttons;

1 reset button;

FT232RL, one USB-2-UART IC;

Socket for button-battery and Li-battery.

The detail information, please check related documents.

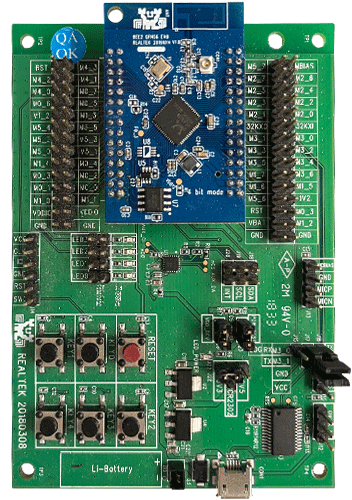

EVB-RTL8762E

EVB is made up of RTL8762E series daught board and one mother board.

Mother board supply:

Power convert module;

6-x sensor;

4LED and 6 key button;

Socket for button-battery and Li-battery;

FT232RL, one USB-2-UART IC.

The detail information, please check related documents.

EVB-RTL8762D

EVB is made up of RTL8762D series daught board and one mother board.

Mother board supply:

Power convert module;

6-x sensor;

4LED and 6 key button;

Socket for button-battery and Li-battery;

FT232RL, one USB-2-UART IC.

The detail information, please check related documents.

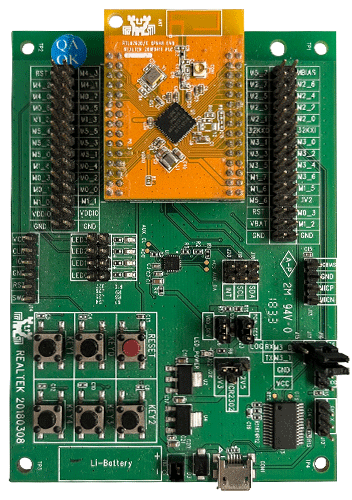

EVB-RTL8762C

EVB is made up of RTL8762C series daught board and one mother board.

Mother board supply:

Power convert module;

6-x sensor;

4LED and 6 key button;

Socket for button-battery and Li-battery;

FT232RL, one USB-2-UART IC.

The detail information, please check related documents.

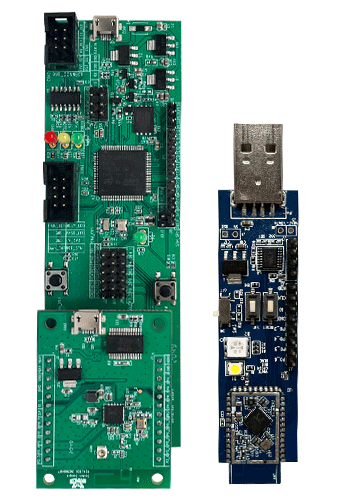

Tools

Hardware kit includes OfflineDownloadTool,RF test board(Golden Sample)and Dongle.

OfflineDownloadTool is a mother board with external NOR Flash, which have connectors to DUT (Device under Test) and RF test board. It also has a USB-to-PC port.

Golden Sample is a RTL8762x series daughter board which has function for wireless compensation of radio frequency.

Dongle is a RTL8762x series USB plug and play debugging tool with FT232RL serial port conversion module, which is usually used for Mesh development and function debugging.

The detail information, please check related documents.

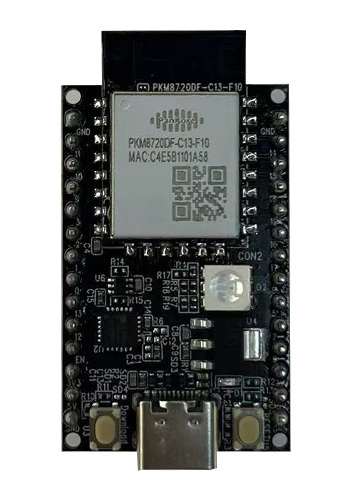

EVB-PKE8720DF-C13-F10

The PKE8720DF-C13-F10 development board is designed for the PKM8720DF-C13-F10 module.

MCU

Part Number: RTL8720DF-VT1-CG.

MEMORY

512KB SRAM + 4MB Flash.

KEY FEATURES

WiFi 4 (802.11 a/b/g/n 1x1) SoC;

Dual-band, 2.4GHz or 5GHz;

Bluetooth LE 5.0;

Bluetooth high-power mode up to 10dB;

Low Power Mode;

Auto Download Mode.

OTHER FEATURES

3*UART/1*I2C/2*SPI/11*PWM/3*ADC/2*IR/19*GPIO/1*SDIO/Audio Codec/USB2.0 HS/FS/LS Mode.

The detail information, please check related documents.

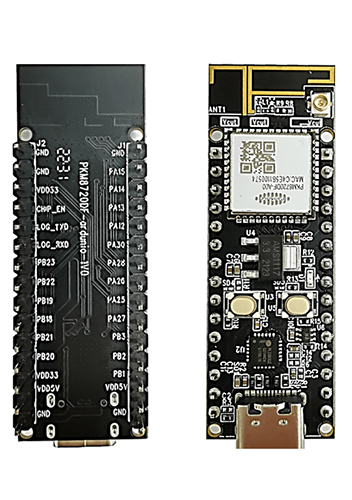

EVB-PKE8720DF-A00-F10

The PKE8720DF-A00-F10 development board is designed for the PKM8720DF-A00-F10 module.

MCU

Part Number: RTL8720DF-VA1-CG.

MEMORY

512KB SRAM + 4MB Flash.

KEY FEATURES

WiFi 4 (802.11 a/b/g/n 1x1) SoC;

Dual-band, 2.4GHz or 5GHz;

Bluetooth LE 5.0;

Bluetooth high-power mode up to 10dB;

Low Power Mode;

Auto Download Mode.

OTHER FEATURES

3*UART/1*I2C/2*SPI/12*PWM/3*ADC/1*IR/19*GPIO/1*SDIO/Audio Codec/USB2.0 Host.

The detail information, please check related documents.
