Find and locate items more conveniently with Apple Find My

The Find My function launched by Apple allows user's devices to use this function to locate and find items. Through the Find My network of billions of Apple products, users can activate the private and secure search function and find their items.

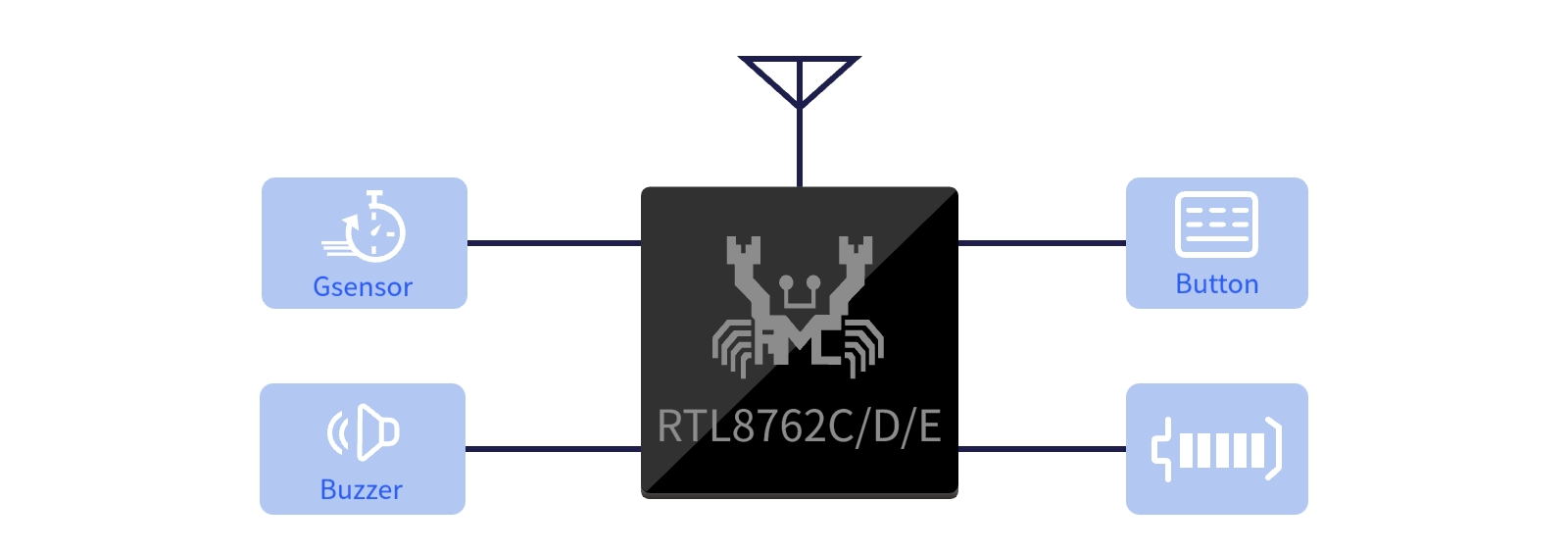

Realtek's Find My solution based on the RTL8762 series BLE SoC has the characteristics of high integration and excellent power consumption indicators, making it convenient for customers to do secondary development of specific Find My products.

Practical Application Case

Apple Find My Practical Application Case

Advantages of Solution

Rich main control resource

The MCU is ARM Cortex processor, with optional main frequency of 40MHz ~ 90MHz and optional SRAM 104KByte ~ 192Kbyte. Supports hardware AES/ECC, very suitable for algorithm-intensive application scenarios.
Supports Bluetooth 5.0, ultra-low power consumption.

Low cost

Use one BLE SoC to actualize a single-chip solution, BLE connection and other functions. High degree of integration, extremely reduce the cost of the solution.

Completed development kits

Full-featured SDK/HDK/Tools development kits, with supporting mobile phone APP engineering, which greatly reduces customer's development workload and accelerates the implementation of project.

Find My Tag SoC Selection Table

Part Number RTL8752HMF RTL8762EMF RTL8762DKF RTL8762CKF
MCU CM0+ 40M CM0+ 40M CM4F 90M CM4F 40M
SRAM 120KB 104KB 192KB 160KB
Flash 512KB 512KB 512KB 512KB
DLPS ~1.4uA ~3uA ~3uA ~3uA
Max GPIO 26 26 34 34
Tx Power 7.5dBm 7.5dBm 7.5dBm 7.5dBm
Package QFN40, 5mm x 5mm QFN40, 5mm x 5mm QFN48, 6mm x 6mm QFN48, 6mm x 6mm
Series RTL8752H RTL8762E RTL8762D RTL8762C
Download related documents Click to download Click to download Click to download Click to download
