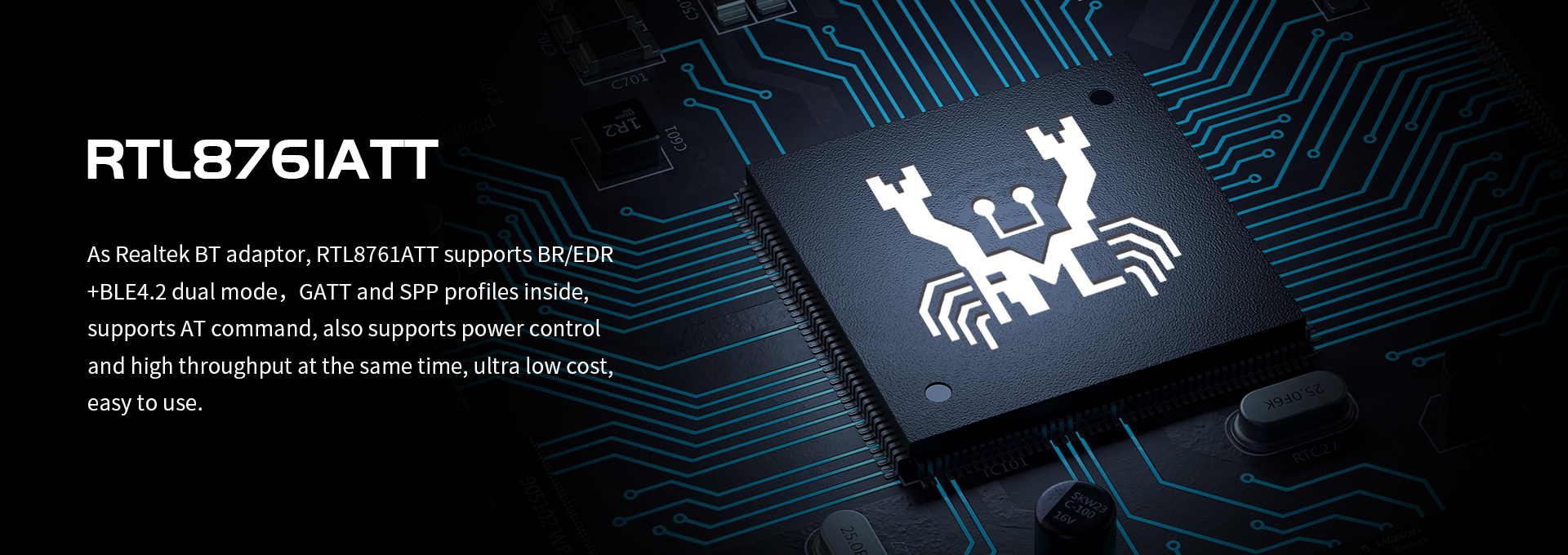

General Description
- BR/EDR+BLE 4.2 Dual Mode
- GATT and SPP profiles inside
- Easy to use, Ultra Low cost
- Supports security simple pairing
On-chip Resources
- Integrated Bluetooth protocol stack on chip
- Integrated serial communication protocol on chip
- Use Config file as user configuration interface
- Supports external 1Mbit SPI flash
- Supports wake up the external MCU by Wakeup pin
RF Performance
- Fast AGC control to improve receiving dynamic range
- Supports Slave AFH mode to improve transmission quality
- Integrated internal Class 1, Class 2, and Class 3 PA
- Supports Power Control
Serial Interface Characteristics
- Supports High Throughput
- UART I/F, H4 supported
- Baud rate up to 4Mbps
- Hardware flow control supported

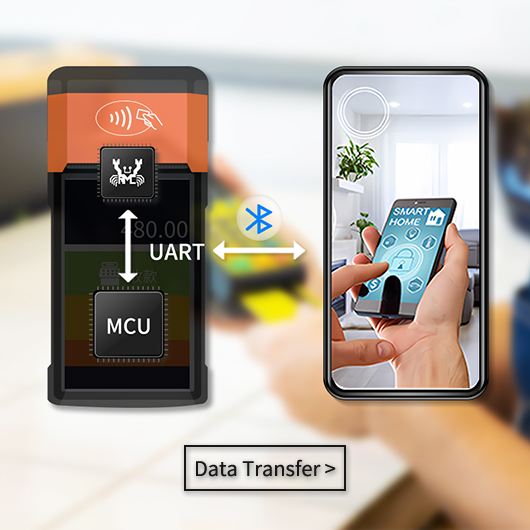

Related applications
