Make installing a Smart Switch easier

Use ultra-low energy BLE SoC as a main control to make a single live wire powered switch adapt to more lamps and lanterns. At the same time, simplify the installation of the switch, making the popularization of single live wire switch become possible.

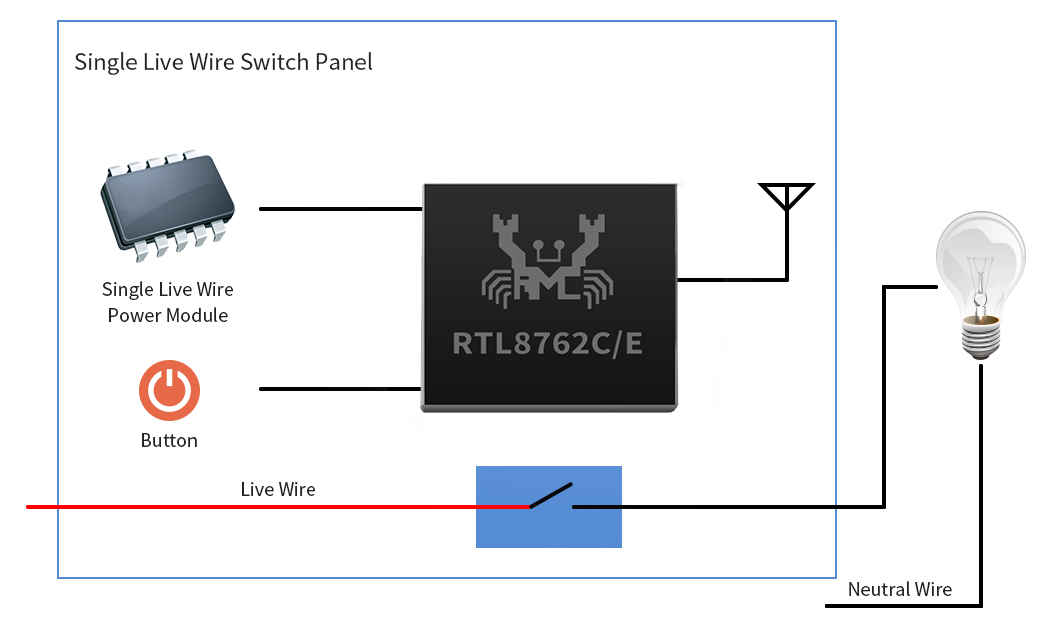

Single-wire Smart Switch Solution

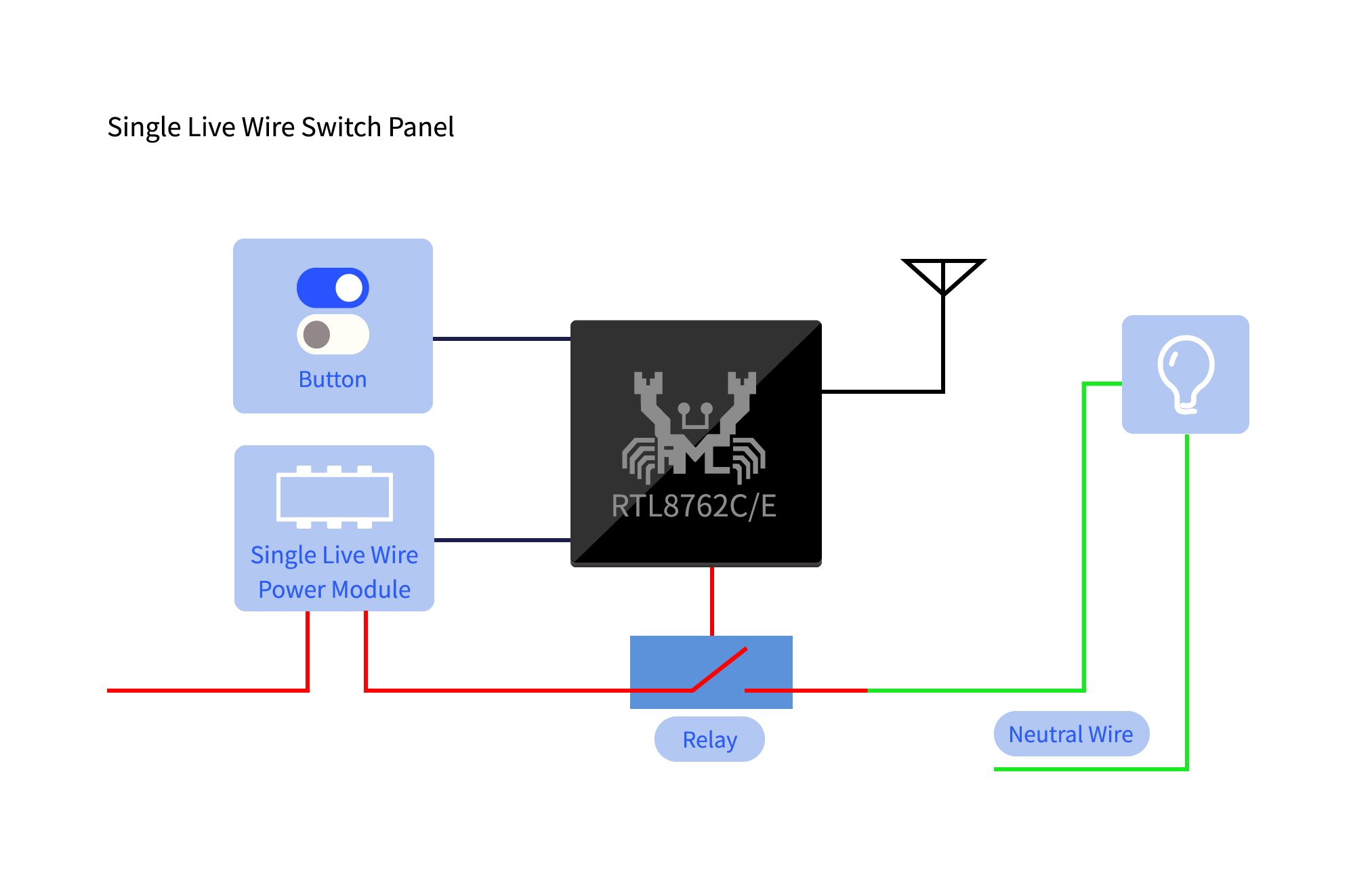

Single-wire Smart Switch Solution

Advantages of Solution

Ultra-low power consumption

Ultra-low power consumption Mesh solution:
• Accepts gateway's message control;
• Reports device status message;
• Does not flash after turning off;
• High success rate.

Supports multi-protocol and multi-platform

Can access platforms such as Tmall, Xiaomi, and Xiaodu through BLE Mesh technology. Also, can access to universal gateway, enrich control method.

Completed development kits

Fully featured Mesh SDK that includes devices and gateway engineering, which greatly reduces customer's development workload and accelerates their implementation of a project.

Single-wire Smart Switch SoC Selection Table

Part Number RTL8762CMF RTL8762EMF
MCU CM4F 40M CM0+ 40M
SRAM 160KB 104KB
Flash 512KB 512KB
Continuous Tx@0dBm 7.9mA 5.9mA
Continuous Rx 7.3mA 5.3mA
DLPS ~3uA ~3uA
PWM 6 4
ADC 12bit, 6 channel 10bit, 4 channel
Package QFN40, 26GPIO available QFN40, 26GPIO available
Download related documents Click to download Click to download
