Introduction

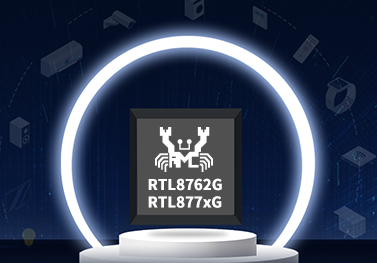

The new coming RTL8762G/877xG series brings higher-capability products to global partners, with a stronger platform computing power and security level upgraded to PSA-L2. This series not only supports BLE 5.3 version, 2.4GHz proprietary, ZigBee and Thread Matter, providing the best choice for more Internet applications, but also supports peripherals such as CAN/Ethernet/USB 2.0 HS, which makes the hardware connection capability of this chip achieve an unprecedented level. The upgraded capabilities such as RGB888 interface provide more options for supporting LCD besides QSPl and 8080, making it faster and more colorful.
DESCRIPTION
CHIP
Highlights
A specialized SDK can quickly design UI products with a resolution of 800x600, and achieve a frame rate of 30 FPS easily with an RGB888 data format.
Equipped with TrustZone, capable of obtaining PSA-Level 2 security certification. Supports AES/SHA/ECC/RSA… and Secure Boot, meeting various security design requirements.
ARM-M55 core with a maximum frequency of 125MHz.
MVE provides DSP-like algorithm services.
384K SRAM offers ample computational space.
The CAN interface aids in the design of industrial and automotive products.
RMII provides Ethernet connectivity capabilities.
USB2.0 Highspeed facilitates connections with high-speed host devices.
Specifications
- Supports Bluetooth 5.3 compliant specification
- LE Audio feature
- Over-the-air (OTA) programming mechanism for firmware upgrade
- Generic applications for GAP central, peripheral, observer and broadcaster roles
- 2.4GHz proprietary
- Zigbee IEEE 802.15.4
- Thread protocol & Matter application
- KM4 core compatible ARM-M55 core MAX@125MHz
- M-profile Vector Extension (MVE) for vector computation
- Trust Zone inside PSA-Level2
- Icache 32KB, Dcache 16KB, SRAM 384KB
- Some part numbers MCM 4MB PSRAM
- AES128/256、RSA 3072、ECC 512、ECDH、ECDSA、EDDSA、SHA256、TRNG
- Secure Boot、Secure OTA、Firmwear encryption (on-the-fly execution)
- Hardware keyscan / Quad Decode
- Embedded IR TX/RX
- ISO7816
- SPIC / SPI_m / SPI_s / SDIO / SD (eMMC)
- Low power comparator
- 8CH - AUXADC
- 24bit HD ADC
- CAN
- RMII for Ethernet
- I2S/DAC/AMIC/DMIC/PDM
- Sample rates: 8K/16K/24K~48KHz
- SPIC/RGB888/SEGCOM
- USB2.0 High Speed
- A config: 0-4dBm
- B config: 0-14dBm
- BLE Receive sensitivity (min.): -98dBm (1M BLE) and -95dBm (2M BLE)
- 15.4 Receive sensitivity: -102dBm (250 kbps O-QPSK DSSS)
- Supports Bluetooth 5.3 compliant specification
- LE Audio feature
- Over-the-air (OTA) programming mechanism for firmware upgrade
- Generic applications for GAP central, peripheral, observer and broadcaster roles
- 2.4GHz proprietary
- Zigbee IEEE 802.15.4
- Thread protocol & Matter application
- KM4 core compatible ARM-M55 core MAX@125MHz
- M-profile Vector Extension (MVE) for vector computation
- Trust Zone inside PSA-Level2
- Icache 32KB, Dcache 16KB, SRAM 384KB
- Some part numbers MCM 4MB PSRAM
- AES128/256、RSA 3072、ECC 512、ECDH、ECDSA、EDDSA、SHA256、TRNG
- Secure Boot、Secure OTA、Firmwear encryption (on-the-fly execution)
- Hardware keyscan / Quad Decode
- Embedded IR TX/RX
- ISO7816
- SPIC / SPI_m / SPI_s / SDIO / SD (eMMC)
- Low power comparator
- 8CH - AUXADC
- 24bit HD ADC
- CAN
- RMII for Ethernet
- I2S/DAC/AMIC/DMIC/PDM
- Sample rates: 8K/16K/24K~48KHz
- SPIC/RGB888/SEGCOM
- USB2.0 High Speed
- A config: 0-4dBm
- B config: 0-14dBm
- BLE Receive sensitivity (min.): -98dBm (1M BLE) and -95dBm (2M BLE)
- 15.4 Receive sensitivity: -102dBm (250 kbps O-QPSK DSSS)
Part Number Comparison
| Part Number | RTL8762GKH | RTL8762GKU | RTL8762GTH | RTL8762GRH | RTL8762GRU | RTL8777GKF―VA4 | RTL8777GKF―VA5 | RTL8772GWP |
|---|---|---|---|---|---|---|---|---|
Protocol | BLE5.3 | BLE5.3 | BLE5.3 | BLE5.3 | BLE5.3 | BLE5.3/Thread Matter | BLE5.3/Thread Matter | BLE5.3/Thread Matter/Zigbee |
CPU | CM55 | CM55 | CM55 | CM55 | CM55 | CM55 | CM55 | CM55 |
Flash | 1MB | 1MB | 1MB | 0.5MB | 0.5MB | 2MB | 4MB | Ext |
RAM | 384KB | 384KB | 384KB | 384KB | 384KB | 384KB | 384KB | 384KB |
PSRAM | No | No | No | No | No | No | No | 4MB |
Security | AES128/256 RSA 3072 ECC 512 ECDH ECDSA EDDSA SHA256 TRNG On-The-Fly Trustzone SecureBoot | AES128/256 RSA 3072 ECC 512 ECDH ECDSA EDDSA SHA256 TRNG On-The-Fly Trustzone SecureBoot | AES128/256 RSA 3072 ECC 512 ECDH ECDSA EDDSA SHA256 TRNG On-The-Fly Trustzone SecureBoot | AES128/256 RSA 3072 ECC 512 ECDH ECDSA EDDSA SHA256 TRNG On-The-Fly Trustzone SecureBoot | AES128/256 RSA 3072 ECC 512 ECDH ECDSA EDDSA SHA256 TRNG On-The-Fly Trustzone SecureBoot | AES128/256 RSA 3072 ECC 512 ECDH ECDSA EDDSA SHA256 TRNG On-The-Fly Trustzone SecureBoot | AES128/256 RSA 3072 ECC 512 ECDH ECDSA EDDSA SHA256 TRNG On-The-Fly Trustzone SecureBoot | AES128/256 RSA 3072 ECC 512 ECDH ECDSA EDDSA SHA256 TRNG On-The-Fly Trustzone SecureBoot |
TxPower (max dBm) | 4 | 4 | 4 | 14 | 14 | 14 | 14 | 14 |
AUX ADC | 5 | 5 | 6 | 4 | 4 | 8 | 8 | 6 |
24bit SDADC | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
Mono DAC | 0 | 0 | 1 | 0 | 0 | 0 | 0 | 1 |
PDM | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 2 |
SPI | Mx2 Sx1 | Mx2 Sx1 | Mx2 Sx1 | Mx2 Sx1 | Mx2 Sx1 | Mx2 Sx1 | Mx2 Sx1 | Mx2 Sx1 |
SPIC | 1 | 1 | 2 | 1 | 1 | 1 | 1 | 3 |
SDIO | 0 | 0 | 1 | 0 | 0 | 0 | 0 | 1 |
I8080 | N | N | N | N | N | N | N | Y |
I2C | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
UART | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 |
PWM | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 |
I2S | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
USB | HS | FS | HS | HS | FS | HS | HS | HS |
CAN | Y | Y | Y | Y | Y | Y | Y | Y |
Ethernet RMII | N | N | N | N | N | N | N | Y |
GPIO | 31 | 31 | 47 | 14 | 14 | 30 | 30 | 58 |
Package (mm) | QFN48, 6x6 | QFN48, 6x6 | QFN68, 7x7 | QFN32, 5x5 | QFN32, 5x5 | QFN48, 6x6 | QFN48, 6x6 | QFN88, 10x10 |
