iAP2

The iAP2 protocol is a communication protocol developed by Apple, primarily used for communication between Apple devices and accessories. The iAP2 protocol is part of Apple's MFi Program. The developers need to join the MFi Program in order to access detailed technical documentation, hardware components, certification tools, and usage licenses. Accessories that undergo the certification process are granted an MFi badge, indicating that they have passed certification and meet Apple's performance standards.

The iAP2 protocol is supported over various transport, such as Bluetooth, USB, UART, etc. This article primarily focuses on the implementation of the iAP2 protocol based on Bluetooth.

The application of the iAP2 protocol in Bluetooth implementation is flexible. A single Apple device can connect to multiple accessories simultaneously, and the same accessory can establish multiple iAP2 session connections with the same Apple device for concurrent data transmission. In the Bluetooth implementation, the iAP2 protocol is implemented based on the BR/EDR RFCOMM protocol and supports functions such as data pass-through and device control.

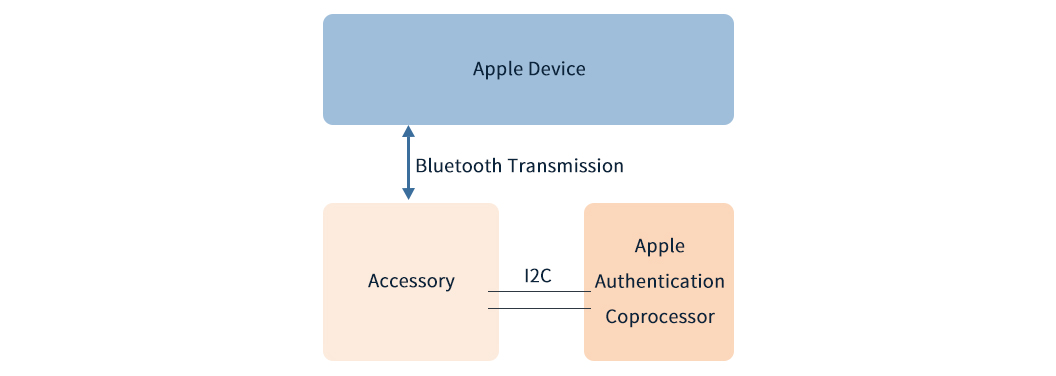

Whenever an accessory establishes a Bluetooth iAP2 connection with an Apple device, it must complete an authentication process with the Apple device. Therefore, an accessory supporting iAP2 protocol must be equipped with Apple Authentication Coprocessor to authenticate itself and establish a secure connection with Apple devices.

Once an accessory establishes an iAP2 Bluetooth connection with an Apple device, it can implement one or more iAP2 sessions to accommodate different scenarios. The main types of iAP2 sessions in Bluetooth implementation are as follows:

 Control Session: Negotiating iAP2 link parameter configurations or exchanging status information.

 External Accessory Session: An extended session type for custom data formats and data transmission rules, allowing users to customize the interaction between the Apple device app and the accessory according to their own data exchange requirements.

Advantages of Bluetooth-based iAP2

As a protocol specifically designed by Apple for its devices, the iAP2 protocol offers higher compatibility with Apple products. Compared to traditional wired connections, Bluetooth connections are more flexible and convenient, freeing users from the constraints of cables. Bluetooth-based iAP2 protocol is suitable for a wider range of scenarios, leading to an improved user experience.

1. High Flexibility

As a mature technology, Bluetooth supports a wide variety of device types and is widely used globally. Bluetooth-based iAP2 applications transmit data through wireless signals, offering greater device mobility and significantly enhancing user freedom.

2. Diverse Implement Scenarios

The iAP2 protocol supports seamless data communications, ensuring high transmission speeds while addressing Apple's inability to use the Bluetooth SPP protocol. Additionally, the iAP2 protocol offers features such as application control and HID data transmission, enabling accessories to implement more complex scenarios through this protocol and have a wider range of uses.

3. MFi Certification

As Apple's self-developed protocol, the iAP2 protocol supports MFi certification. This certification ensures that accessories are compatible with Apple devices and confirms the quality and reliability of the accessories. The MFi certification enhances the recognition and trustworthiness of the products, significantly boosting consumer confidence in them.

Implementation for Bluetooth-based iAP2

Bluetooth-based iAP2 protocol can be applied in scenarios such as wireless audio devices, office equipment, fitness devices, and entertainment equipment. Its wireless characteristics provide users with a more comfortable and convenient seamless connectivity experience between Apple devices and various accessories.

Wireless Audio Devices

Audio devices such as headphones, speakers, and microphones can connect to Apple devices via Bluetooth-based iAP2 protocol, enabling high-quality audio playback.

Office Equipment

In daily office environments, office equipment based on the iAP2 protocol can interact with Apple devices through Bluetooth connection, providing more options for office equipment.

1. Wireless Keyboard

The wireless keyboard based on the Bluetooth HID over iAP2 protocol ensures reliability while providing a variety of choices for office equipment to meet the preferences of different people.

2. Trackpad

The trackpad based on the Bluetooth HID over iAP2 protocol offers a more diversified office equipment, meeting the needs of different users and enhancing work efficiency.

Game Controller

The MFi-certified game controller ensures stability while providing more diverse options to meet the needs of different game enthusiasts.

Other Data Pass-through Scenarios

Compared to other Bluetooth protocols, the iAP2 protocol offers greater integration with the Apple ecosystem and enhanced flexibility. It facilitates file transfer, data transparency, and other functionalities between accessories and Apple devices, ensuring seamless interaction with applications on Apple devices.

Conclusion

The Realtek SDK integrates a Bluetooth-based iAP2 protocol framework, enabling products using Realtek Bluetooth chips to quickly meet customized development needs on the existing framework and gain a competitive edge. The Realtek SDK provides a corresponding demo application for developers to reference during the development process.

For more details, please refer to https://docs.realmcu.com/sdk/rtl87x3e/common/en/latest/text/Samples/Bluetooth/bredr_iap_demo.html.
